Multi-positional Telescopic Stays

DESCRIPTION

DESTAK® patented Multi-Stage Telescopic Mechanism ensures quick and consistent positioning at predefined locking positions. It is designed for a wide range of applications where the position of a component, such as an upward-opening lid, needs to be maintained at different angles..

It can be used for height and angle adjustment of furniture foot and head parts, as well as for height adjustment accessories in sun loungers, deckchair, height-adjustable tables, upward-opening lids and upward-opening windows

ÇALIŞMA

Positioning: Slightly pull the component that is desired to be maintained in an angular position until the telescopic stay’s subsequent level and release
Return:
5 & 10 Levels Telescpic Stays: Before returning the telescopic stay’s closed position, fully extend it
6-Levels Telescpic Stay: Thanks to its Multi-point Returnable design, it does not require to be fully extended before closing. Slightly pull out from its current level and close.

FITTING

Standard: Direct Fit by the holes
Optional: Fixing Bracket

BENEFITS

– User friendly design
– Easy & Direct installation (Optional fixing bracket available)
– From 5 to 10 adjustment positions
– Low Operating Force
– Consistent stop a tany holding position

SPECIFICATIONS

Material & Finish: Carbon Steel (EN 10111:2008) & Zinc Coated
Thickness: Arm: 3mm / Housing: 2mm
Weight: 5-Levels: 175 gr / 6-Levels: 260 gr / 10-Levels:270 gr
Capacity: 13,5 kg

VERSIONS

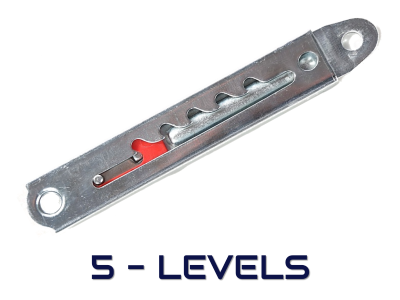

– 5-Levels

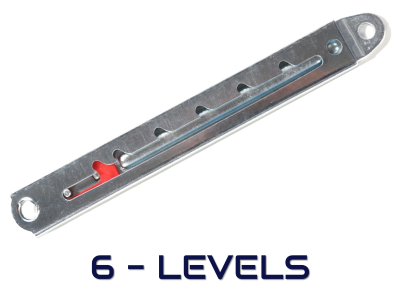

– 6-Levels (Multi-point Returnable)
– 10-Levels
